We supply automotive cables for the inside/engine/sensor/communication in accordance with the standards of various global car makers and customized lightweight cables for future cars, high voltage cables and Ethernet high-speed data communication cables based upon state-of-art technology and quality.

ES cables

Cables qualified for Hyundai/Kia Motors’ engineering standard

General

- Application: Cables used in main, floor, door, etc. inside a car
- Temperature class: 95℃
- Product range: AVS, AVSS, CIVUS, CHFUS, etc.

Heat Resistant

- Application: Cables used in car engine, control, battery, headlamp, etc.
- Temperature class: 115℃, 135℃, 150℃, 200℃
- Product range: AVSSXF, AESSXF, AEXHF, etc.

Shield

- Application: Cables used in automotive electric devices such as audio, stereo, dashboard, etc.
- Temperature class: 95℃, 115℃, 135℃, 150℃
- Product range: AVSS-BS, AVSSXF-BS, AESSXF-BS, etc.

ISO cables

Cables qualified for ISO standard and global car makers such as GM, FORD, RENAULT, FCA, VOLVO, etc.

Class B

- Application: Cables used in main, floor, door, etc. inside a car
- Temperature class: 100℃
- Product range: FLRY, 2TAD/2TBD/2TCD, CU-R2PVC, etc.

Class C

- Application: Cables used in car engine, control, battery, headlamp, etc.
- Temperature class: 125℃
- Product range: FLR2X, FLRYW, 3TAD/3TBD/3TCD, CU-R3XLPE, CU-R3PVC, CU-R3EPDM, NF3Z, A3Z, etc.

Class D

- Application: Cables used in car engine, control, battery, headlamp, etc.
- Temperature class: 150℃
- Product range: FLR91X, 4TAD/4TBD/4TCD, CU-R4XLPE, CU-R4EPDM, etc.

Class E

- Application: Cables used in car engine
- Temperature class: 175℃
- Product range: FLR7Y

Class F

- Application: Cables used in car engine, transmission and battery
- Temperature class: 200℃
- Product range: FL2G, FLR6Y, CU-R6XLFE

JASO cables

Cables qualified for JASO standard and Japanese car makers

General

- Application: Cables used in main, floor, door, etc. inside a car
- Temperature class: 80℃, 85℃
- Product range: AVS, AVSS, CIVUS, CHFUS, etc.

Heat Resistant

- Application: Cables used in car engine, control, battery, headlamp, etc.
- Temperature class: 100℃, 120℃
- Product range: AVX, AVSSXF, AEX, AESSXF, etc.

SAE cables

Cables qualified for SAE standard and global car makers such as GM, FORD, FCA, etc.

General

- Application: Cables used in main, floor, door, etc. inside a car
- Temperature class: 80℃
- Product range: TWP, etc.

Heat Resistant

- Application: Cables used in car engine, control, battery, headlamp, etc.
- Temperature class: 125℃
- Product range: SXL, GXL, TXL, etc.

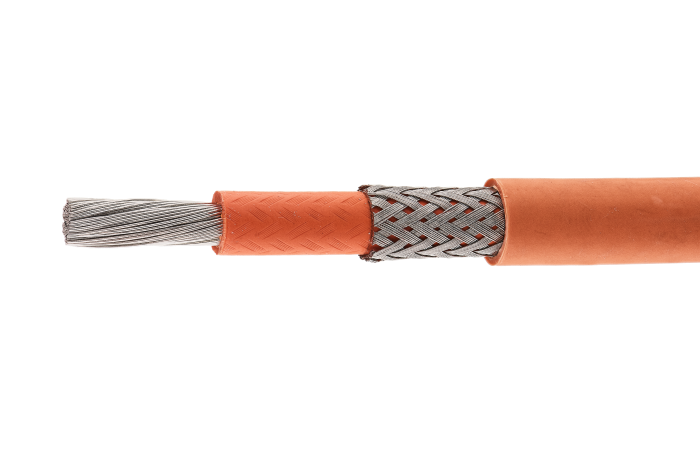

High voltage cables

High voltage cables and charging cables for eco-friendly vehicles in accordance with various types of global standards

JASO Standard

- Application: HV cables used in battery, inverter and junction box in an eco-friendly car
- Rated voltage: 600Va.c. or 600Vd.c.
- Temperature class: 120℃, 150℃
- Product range: EEX, EEHX, EEXBS/EEXS, EEXBSX/EXSW, EEHXBSX/EX3SW, etc.

ISO Standard

- Application: HV cables used in battery, inverter and junction box in an eco-friendly car
- Rated voltage: 600Va.c. or 900Vd.c.
- Temperature class: 125℃, 150℃, 175℃, 200℃
- Product range: FHL2X, FHL91X, FHL2G, FHL2XC2X, FHL91XC91X, etc.

ES Standard

- Application: HV cables used in battery, inverter and junction box in an eco-friendly car
- Rated voltage: 600Va.c. or 600Vd.c.
- Temperature class: 125℃, 150℃
- Product range: AHEX, AHHEX, AHEX-BS, AHHEX-BS, etc.

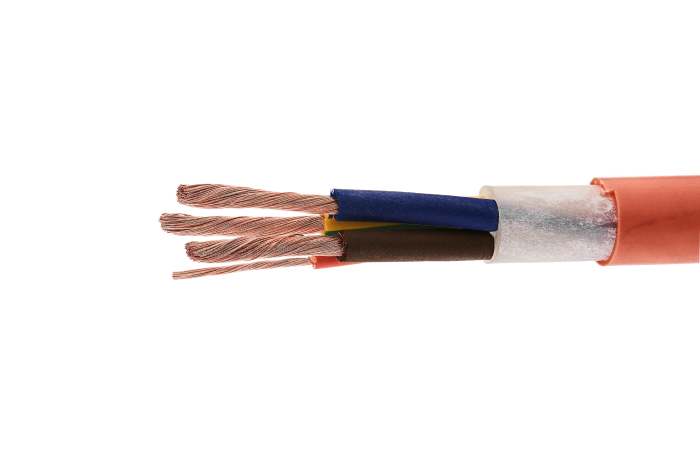

Charging cables

- Application: Charging cables for eco-friendly vehicle
- Rated voltage: 300Va.c./500Vd.c., 450Va.c./750Vd.c., 600Va.c./1kVd.c.
- Temperature class: 90℃, 105℃
- Certifications: UL, VDE(CE), CQC
- Product range: EVJT, EVJE, EVVC, EVC 05BZ5-F, EV-EYU, etc.

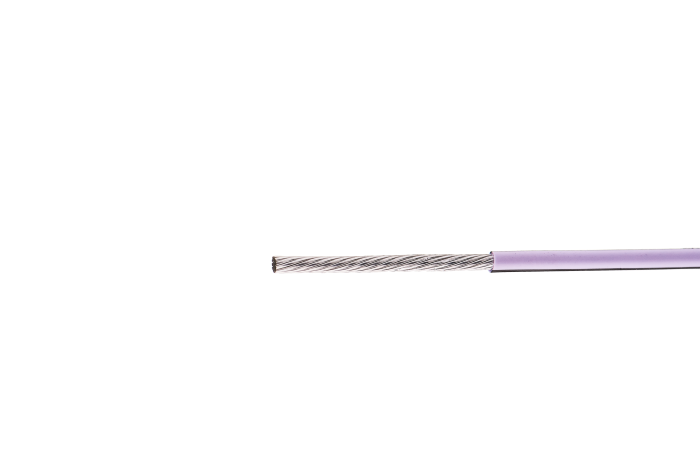

Aluminum cables

Automotive aluminum cables following a variety of global standards

JASO Standard

- Application: Cables used in main, floor, door, etc. inside a car
- Temperature class: 85℃
- Product range: ALVUS, ALVSS, etc.

ISO Standard

- Application: Cables used in main, floor, door, etc. inside a car
- Temperature class: 100℃
- Product range: FLALUY, FLALRY, etc.

ES Standard

- Application: Cables used in main, floor, door, etc. inside a car
- Temperature class: 100℃, 135℃
- Product range: FLALUY, FLALRY, AL-VUHF, AL-EX, etc.

Specialty cables

Specialty cables with high quality and durability applied to sensor, communication and heating system for in-vehicles

Sensor cables

- Application: Cables used in sensing system of car engine, wheel, etc.
- Feature: High Durability, High Heat Resistant
- Product range: WECC(SHIELD), ABS-PS, EPB, AKSC-T, etc.

Ethernet cables

- Application: Cables for Automotive Ethernet communication
- Feature: In accordance with features of Open Alliance and global car makers’ standards
- Product range: AET2-100(100Mbps), AET2-1000(1Gbps), AET3-100(100Mbps), etc.

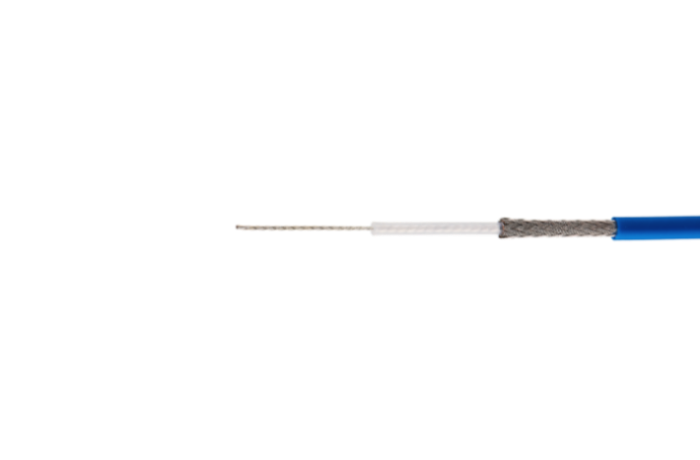

Coaxial cables

- Application: Cables for in-car radio communication (Radio, GPS, DMB, V2X, etc.)
- Feature: low-loss signal transmission, excellent performance of EMC
- Product range: AR-3.0C, 1.5D-EXHV-AS, etc.

Heating cables

- Application: Cables used in In-car seat heater, SCR (Selective Catalytic Reduction) system
- Feature: High durability, Fire retardant
- Product range: SHT-FR(UC), ASHW, etc.
